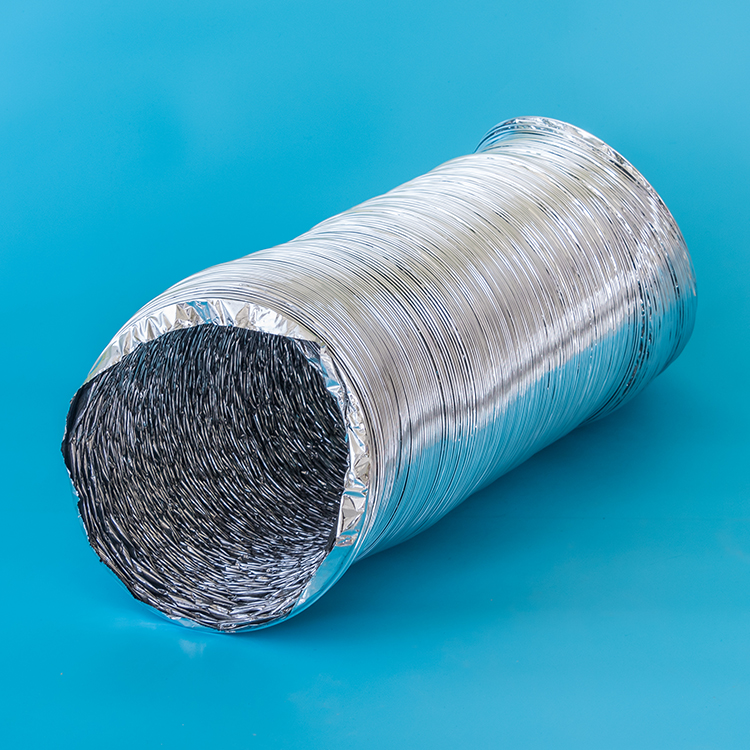

VMPET Aluminum Flexible Duct
鍍鋁膜軟管
|
Product Code |
XY-104 |
產品編碼 |
XY-104 |
|
Construction |
1 VMPET Aluminum Foil + 1 PET |
材料 |
1層鍍鋁膜+1層PET |
|
Color |
Both sides silver/outer silver,inside black |
顏色 |
雙面銀色/外銀色，內黑色 |
|
AvailableDiameter |
40mm-650mm (1.5"-25") |
直徑范圍 |
40mm-650mm (1.5"-25") |
|
Carbon Steel Wire Diameter |
0.6mm-2.5mm |
鋼絲直徑 |
0.6mm-2.5mm |
|
StandardLength |
10m(Max) |
標準長度 |
10m(Max) |
|
Thickness |
0.025mm-0.027mm |
厚度 |
0.025mm-0.027mm |
|
Fire Resistance |
ClassB1 |
防火等級 |
B1級，阻燃 |
|
CompressRatio |
1: 25 |
壓縮比 |
1：25 |
|
Temperature Range |
-30℃/+150℃ |
溫度范圍 |
-30℃/+150℃ |
|
Operating Pressure |
3000Pa |
最大壓力 |
3000Pa |
|
Maximum Air Velocity |
最大風速 |
30m/s |
鍍鋁膜伸縮軟管采用鍍鋁膜復合膜繞帖高彈性螺旋形強韌鋼絲制作而成。
拉直后自持性好、風阻小、清潔衛生，遇到高溫或火警時，不產生有毒氣體，適用于高、中、低壓的空調及通風系統，安裝便捷。
Made of spiral steel wire laminated with VMPET Aluminum foil.
Self-holding during usage and low wind resistance.
No toxic gases release at high temperature or in the case of fire alarm.
Ideal for using in general purpose exhaust applications.
