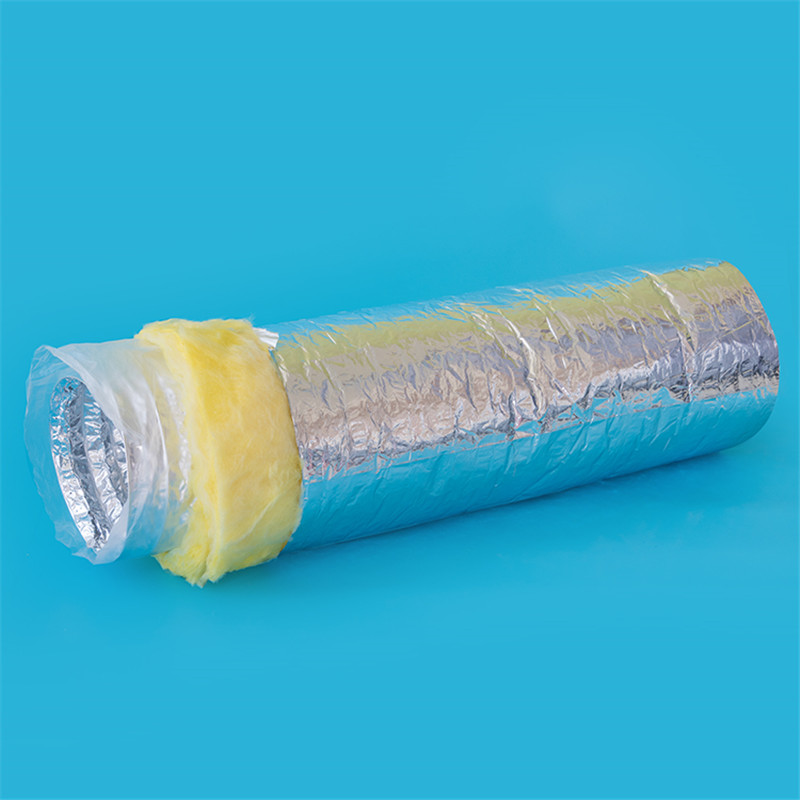

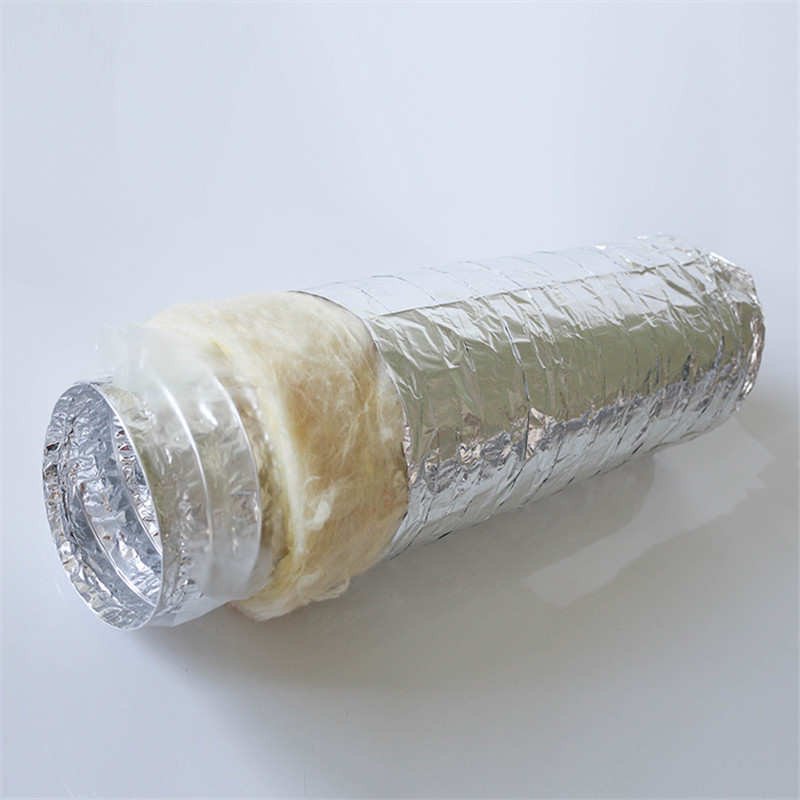

Acoustic Duct
消音管
|
XY-701 |
|||||
|
Construction (From outside to inside) |
Sleeve |
Aluminum Foil/Glass Fabric/Combi PVC |
Aluminum Foil/Glass Fabric/Combi PVC |
Aluminum Foil / Glass Fabric / Combi PVC / VMPET |
|
|
Fiberglass/Polyester |
Density /Gram Weight |
16kg/m3-32kg/m3 |
10kg/m3-24kg/m3 |
100g/m2-750g/m2 |
|
|
Thickness |
25mm/30mm |
25mm / 50mm |
|
||
|
Plastic Bag |
PET |
PET |
PET |
||
|
Inner Duct (With hole) |
Material |
Single/Double Layer Aluminum Flexible Duct |
Single/Double Layer Aluminum Flexible Duct |
Single / Double Layer Aluminum Flexible Duct / VMPET Flexible Duct |
|
|
Diameter |
50mm-650mm (2"-25") |
50mm-650mm (2"-25") |
50mm-650mm (2”-25”) |
||
|
Carbon Steel Wire Diameter |
0.6mm-2.5mm |
0.6mm-2.5mm |
0.6mm-2.5mm |
||
|
Length |
10m(Max) |
10m(Max) |
10m(Max) |
||
|
Thermal Insulation |
|
|
R 0.4-R 3.0 |
||
|
Fire Resistance |
ClassA2(Max) |
ClassA2(Max) |
Class A2(Max) |
||
|
CompressRatio |
1:10 |
1:10 |
1:10 |
||
|
Temperature Range |
-30℃/+150℃ |
-30℃/+150℃ |
-30℃/+150℃ |
||
|
Operating Pressure |
3000Pa |
3000Pa |
3000Pa |
||
|
Maximum Air Velocity |
30m/s |
30m/s |
30m/s |
||
|
產品編碼 |
XY-701 |
||||
|
構成（由外到內） |
外套 |
鋁箔/玻纖布/復合PVC |
鋁箔/玻纖布/復合PVC |
鋁箔/玻纖布/復合PVC / 鍍鋁膜 |
|
|
玻璃棉/無紡棉 |
密度/克重 |
16kg/m3-32kg/m3 |
10kg/m3-24kg/m3 |
100g/m2-750g/m2 |
|
|
厚度 |
25mm/30mm |
25mm / 50mm |
|
||
|
塑料膜 |
PET |
PET |
PET |
||
|
內管(帶孔) |
材質 |
鋁箔單管 |
鋁箔單管 |
鋁箔單管/ 鍍鋁膜單管 |
|
|
內徑 |
50mm-650mm (2"-25") |
50mm-650mm (2"-25") |
50mm-650mm (2”-25”) |
||
|
碳素鋼絲直徑 |
0.9mm-1.3mm |
0.9mm-1.3mm |
0.9mm-1.3mm |
||
|
標準長度 |
10m(Max) |
10m(Max) |
10m(Max) |
||
|
保溫系數 |
|
|
R 0.4-R 3.0 |
||
|
阻燃等級 |
A2級，難燃 |
A2級，難燃 |
A2級，難燃 |
||
|
壓縮比例 |
10 : 1 |
10 : 1 |
10 : 1 |
||
|
溫度范圍 |
-30℃/+150℃ |
-30℃/+150℃ |
-30℃/+150℃ |
||
|
最大壓力 |
3000Pa |
3000Pa |
3000Pa |
||
|
最大風速 |
30m/s |
30m/s |
30m/s |
||
